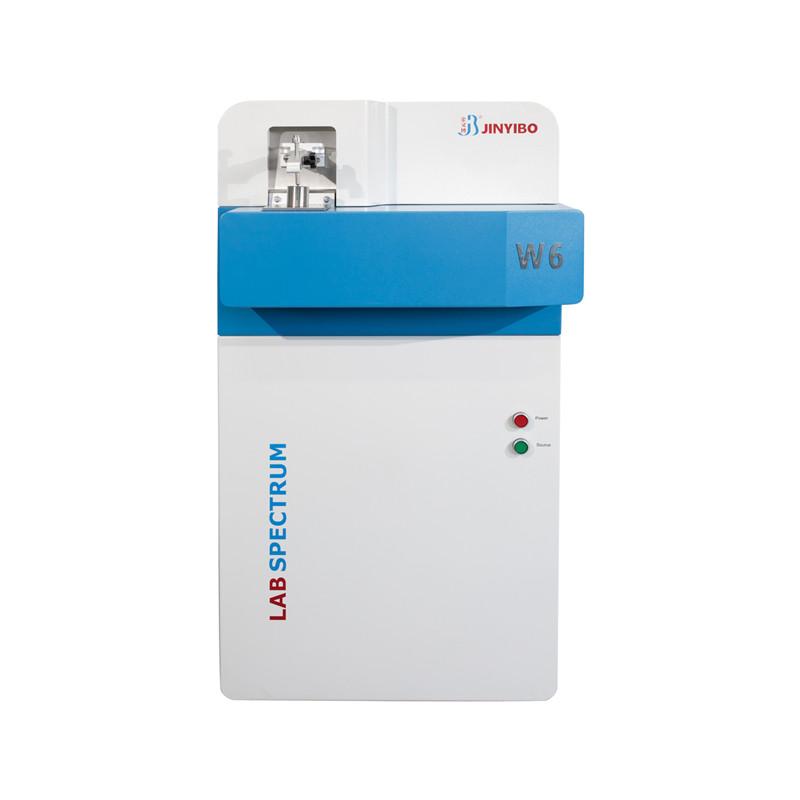

W6 Vacuum Arc Spark Optical Emission Spectrometer

CCD-based, spark discharge, optical emission spectrometer

Software-extendable configuration fro utmost elemental flexibility

Ultra-low limits of detection

Ultra-high speed of measurement

Long-term stability and repeatability

Excellent ease of use for effortless operations- simplified operator view presents clear choices via dedicated toolbar buttons

  • Product Detail
  • Video

Summary:

W6-The most advanced floor type Arc/Spark-OES with Ultimate Performance for Metal Analysis. Its design combines high performance with rugged construction and operational convenience with reliable operation. The adoption of vacuum optical chamber design, full-digital excitation light source, advanced CCD detectors, and high-speed data readout system equips the device with high properties, ultra-low limit of detection (LOD), long-term stability and repeatability. Its analytical precision reaches the world leading level. It is one of the major devices that applies to quality control, material brand recognition, material research and development in the metallic manufacturing, processing and smelting industry. This analyzer sets a new standard for R&D and process/quality control.



Applications:

High-end Laboratories Defence, Railways, pure research, etc.

Pure metal applications 99.9%+ purity Al, Pb, Zn, Mg etc.

Regulatory compliance Very low LODs to control Pb, Cd, As etc. (e.g. ship-making)

Integrated Steel Plants C, S, P, B, N, Ti;

Manufacturing Facilities

Warehouse material identification

Base: Fe, Cu, Al, Ni, Co, Mg, Ti, Zn, Pb, Sn, Ag etc



Features:

Accurate and precise analysis help grade determination

Unmatched analytical performance and reliability with excellent long-term stability

Full wavelength coverage, customized factory calibration, adding new element without further hardware configuration.

Wavelength range 130nm~800mn, capacity to analyze more elements required

Open Sample Stand to conveniently accommodate

samples of a wide range of sizes and shapes

Easy to use with full PC control

Wired/wireless Remote transmission and display provision of analytical results

Advanced instrument and user safety features -sample detection, emergency stop, trippers, user alerts and many more

High-resolution Multi-CCD optics for optimal spectral line separation.

Vacuum optics enabling fast stabilization

Low Total Cost of Ownership

Comprehensive diagnostic system including error detection, logging and reporting.

In-built safety features for instrument and user safety



Specification:

Optical System

Single optics system using latest-generation, high-resolution CCD detectors

Wavelength range: 130-800 nm

Paschen Runge Mounting in a Rowland Circle of focal length up to 400 mm

Resolution: 30pm pm (1 pm = 10-12 m/10-3 nm)

Thermally stabilized optics to ensure high precision and stability



Calibration

Standard factory calibrated programs

Freely selected analysis programs

Customized calibrated programs according to individual requirements



Spark Stand

Open Stand with clamping system designed to ensure high sample throughput

Analysis of samples with various kinds of geometries

Super argon saver for optimized argon flow



Excitation Source

Digital Pulsed Current Controlled Source

Multi-frequency range

Fully computer controlled



Analytical Features

Display of Mean Value and RSD/SD

Global and Type Standardization

Simple Re-standardization

JINYIBO analysis software for sorting metals element-wise

Analysis of 40+ elements even at trace levels

Suitable for very high-purity analysis of Cu, Al, Pb, Zn, etc

Applications for analysis of wires and thin sheets



Software

Intuitive icon and menu-based design to ensure ease-of-use

Comprehensive diagnostics: detection, logging, reporting

Customized element view & decimal point position

Compatible with Windows OS

Maintenance scheduling and alerts

Auto-detection of sample



Accessories and Options

Wire Analysis Adapters

Small Sample Analysis Kit

Spectrometer Sample Surface Polishing Machines

Certified Reference Materials (CRMs)



Electrical and Environmental Requirement

AC220±20VA, 50HZ (Customized)

Max750W in sparking

Average standby power 100W

Room temperature: 10℃~35℃

Relative humidity:20%~85%



Dimension

650mm(L)*860mm*1200mm(H)

Net weight: 200kg
