Difference between Optical Emission Spectrometer and ICP OES

Full-spectrum direct-reading spectrometers (typically referring to full-spectrum direct-reading optical emission spectrometers based on atomic emission principles, OES) and ICP spectrometers (inductively coupled plasma emission spectrometers, ICP-OES) are both analytical instruments based on atomic emission spectroscopy principles. However, they have significant differences in terms of technical principles, application scenarios, and performance characteristics. The following provides a detailed comparison based on core differences and applicable scenarios:

I. Differences in Core Technology Principles

1. Differences in Spark Sources

Optical Emission Spectrometer (OES):

Primarily uses sparks or arcs as spark sources. For example, metal samples are instantly heated to high temperatures (thousands to tens of thousands of degrees Celsius) through high-voltage spark discharge (or arcs) between electrodes, causing the atoms on the sample surface to be excited and emit characteristic spectra.

Features: The excitation energy is concentrated on the sample surface, eliminating the need for a complex sample introduction system, making it suitable for direct excitation of solid metal samples.

ICP Spectrometer (ICP-OES):

It uses inductively coupled plasma (ICP) as the excitation source. The sample must first be converted into a solution (or aerosol), then introduced into the plasma torch via a nebulizer (temperature up to 6000–10000 K), where it is excited and emits a spectrum in the high-temperature plasma.

Features: The plasma temperature is high and stable, with uniform excitation energy, suitable for liquid, solid (requiring dissolution into a solution).

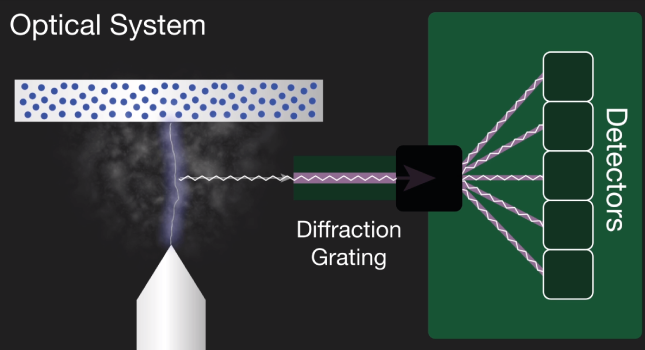

2. Optical System and Detection Range

Optical Emission Spectrometer (OES):

The optical system typically employs a Paschen-Runge mounting (Roland circle structure) combined with a CCD/CMOS full-spectrum detector, enabling simultaneous detection of the entire wavelength range (typically covering 160–800 nm).

Advantages: Rapid capture of multi-element characteristic spectral lines, suitable for simultaneous analysis of common elements in metals (such as Fe, Al, Cu, Si, Mn, etc.), with extremely fast analysis speed (single detection takes only a few seconds to several dozen seconds).

ICP Spectrometer (ICP-OES):

The optical system typically employs a cross-dispersion system combining a medium-order grating and prism, also supporting full-spectrum detection (covering 160-800 nm). However, due to the higher plasma excitation energy, it can excite more high-ionization-energy elements.

Advantages: Higher detection sensitivity for trace elements (ppm to ppb levels) and a broader range of analyzable elements (including non-metallic elements such as B, P, S, and rare earth elements).

II. Performance and Application Scenario Comparison

III. How to choose?

If you need to quickly test the composition of metal alloys (such as analysis in front of a steel furnace or incoming material inspection), priority should be given to optical emission spectrometers.

If you need to analyze liquids, non-metals, trace elements (such as heavy metals in water or rare earth elements in soil), or require higher detection sensitivity, priority should be given to ICP spectrometers.

OES and ICP-OES are not substitutes for each other, but rather complementary analytical tools that play irreplaceable roles in their respective fields.
