The Importance of Optical Emission Spectrometers in the Steel Industry

Optical emission spectrometer have become indispensable key testing equipment throughout the entire production chain in the steel industry from raw material intake to finished product shipment for their core advantages of speed, precision, efficiency, and adaptability to metal samples.

I. Furnace Front Smelting: Real-time Composition Control to Prevent Batch Rejects

The core of steel smelting involves adjusting raw materials (iron ore, scrap steel, alloying elements) through high-temperature melting (converter, electric furnace, refining furnace) to achieve composition specifications (e.g., C, Si, Mn, P, S, Cr, Ni content). This process demands extreme real-time responsiveness; failure to promptly correct composition deviations may render an entire furnace of molten steel unusable, incurring substantial losses. The role of optical emission spectrometers in this process:

Rapid analysis: From sampling molten steel (casting small test blocks), grinding the surface, to obtaining results, the entire process takes only 30 seconds to 2 minutes. This is significantly faster than traditional chemical analysis (requiring several hours), perfectly matching the ‘real-time control window’ of the smelting process.

Multi-element Simultaneous Detection: A single excitation enables concurrent analysis of over ten critical elements in steel (e.g., C, Mn, Si, P, S, Cr, Ni, Mo), covering composition requirements for the vast majority of steel grades (carbon steel, alloy steel, stainless steel, heat-resistant steel, etc.).

Guided Alloying: Based on detection results, smelting engineers can instantly adjust the addition of alloying materials (such as carbon additives, silicomanganese alloy, ferrochrome) to ensure molten steel composition precisely meets target grades (e.g., Q235B steel requires carbon content controlled at 0.12%-0.20%, phosphorus ≤0.045%). This prevents composition non-conformities at source.

II. Raw Material Inspection: Controlling Incoming Quality to Eliminate Risks from Substandard Materials

Fluctuations in the composition of raw materials for steel production (scrap steel, iron ore, pig iron, alloy additives, etc.) directly impact the stability of subsequent smelting processes. Should harmful elements (e.g., excessive P or S) or alloying elements (e.g., insufficient Cr or Ni) exceed permissible limits in raw materials, this not only increases smelting complexity but may also result in finished products failing to meet quality standards. Core Value of Optcial Emission Spectrometers:

Rapid Raw Material Screening: Enables swift detection of primary composition and harmful element content in incoming bulk materials (e.g., scrap steel, pig iron ingots) without complex pre-treatment (merely requiring grinding to remove oxide layers), thereby assessing compliance with procurement standards.

Mitigating Mixed Material Risks: For instance, distinguishing high-grade scrap (low P, low S) from ‘low-grade scrap’ (high harmful elements), or identifying alloy scrap (e.g., stainless steel containing Cr, Ni) mixed with ordinary scrap to prevent smelting failures caused by incorrect material usage.

Reducing procurement costs: By accurately detecting raw material composition, it prevents cost losses from ‘misrepresented composition’ (e.g., insufficient alloy content declared by suppliers) while providing data-driven pricing for raw materials.

III. Finished Product Quality Control: Ensuring Compliance with Standards to Support Product Grading and Regulatory Conformity

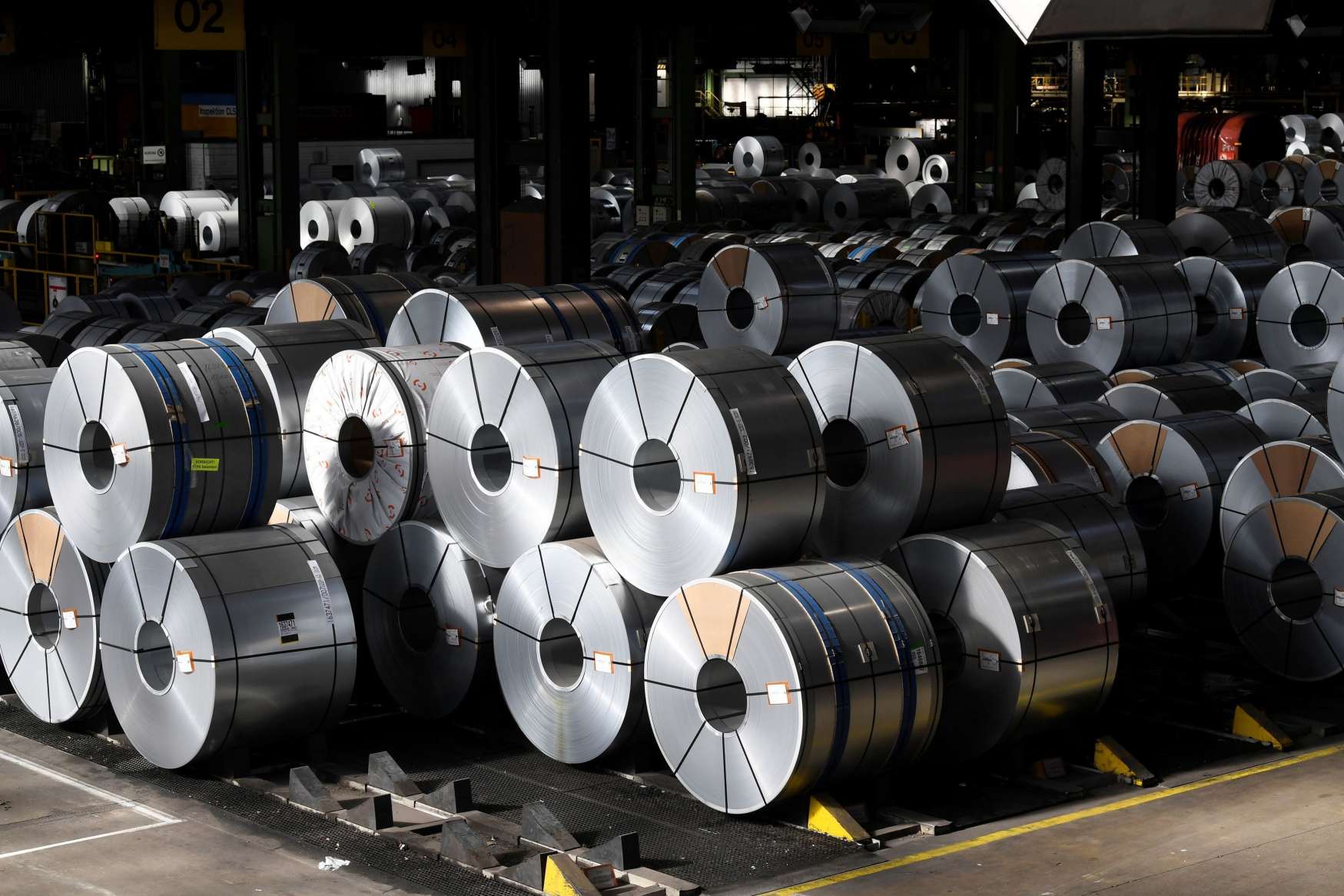

Steel products (plates, tubes, sections, wires, etc.) must adhere to stringent industry/international standards (e.g., China's GB, America's ASTM, Germany's DIN) based on their intended application. Specific grades of steel have precise elemental composition limits (e.g., 304 stainless steel requires 18%-20% Cr and 8%-11% Ni). Optical emission spectrometers serve as the ‘final line of defence’ for finished product quality:

Batch sampling/full inspection: Randomly sample finished steel products on the production line to rapidly verify whether their composition meets target grade requirements, ensuring outgoing products are compliant and qualified.

Trace harmful element detection: For high-end steels (e.g., automotive, wind power, nuclear applications), stringent control of trace harmful elements (e.g., P ≤ 0.02%, S ≤ 0.01%, or As, Sn, Pb) is essential. Optical emission spectrometers achieve detection limits of 0.0001%-0.01% (ppm level), meeting high-precision requirements.

Product Grading and Traceability: Spectral analysis data enables quality classification of finished products (e.g., Grade 1, conforming products) while establishing composition testing records. These records provide the basis for subsequent quality traceability, such as tracing production batches during customer complaints.
