Natural Convection Drying Oven: Its core purpose is to remove moisture or volatile substances from filter membrane while ensuring stable material performance, thereby ensuring the accuracy of cleanliness analysis. Technical Specifications: Operating Temperature Range: RT +10-300°C Temperature Resolution: 0.1°C Temperature Fluctuation: ±1°C Temperature Distribution Accuracy: ±3.5% Timer: 0-9999 minutes (with timer wait function) Inner Dimensions (W*D*H): 260*260*260mm Outer Dimensions (W*D*H): 380*455*568mm Internal Volume: 18L Power Supply (50/60Hz) Rated Current: AC220/2.7A Rated Power: 0.6kW Net Weight/Gross Weight (kg): 15/22   Vacuum Desiccator A vacuum desiccator is a sealed container used in the cleanliness testing laboratory to store or cool the filter membrane that need to be moisture-proof. Its core purpose is to provide a low-humidity environment for the filters inside to prevent them from absorbing moisture from the air and deteriorating, deliquescing, or affecting subsequent experiments. -Material: Polypropylene -Maintaining a 740mm vacuum for 24 hours -Capacity: 4.35L -Diameter: 250mm -External/Internal Height: 300mm/225mm   Desiccant The core purpose of desiccant is to absorb moisture or humidity in the environment and maintain a low humidity state in a specific space or object, thereby preventing the items from getting damp, moldy, rusting or deteriorating. -Material: Silica -Net Weight: 470g -Moisture Content: ≤5% -Porous structure, visible moisture absorption -Material is reusable     Electronic Cooling Oven It is used to store filter membranes and provide the function including cooling, moisture-proofing, mildew-proofing, and oxidation prevention, as well as effectively reducing humidity. Technical Parameters: Model: AB-30C Volume: 30L Dimensions: 320mm deep x 290mm wide x 415mm high (including 13mm foot pads) Power Consumption: <8W (approximately 3 kWh/month) Material: National standard cold-rolled steel, tempered glass door Temperature Control Range: 25%-60% RH Analysis Balance - 5 position: Precisely measures the weight of the filter membrane before and after cleanliness extraction, thereby determining the weight of the particulate contaminants in the components. Technical Specifications: Maximum Capacity: 120 g Readability: 0.1 mg Repeatability (typical): 0.08 mg Minimum Capacity (U=1%, k=2), typical: 16 mg Settling Time: 2 s Calibration: External Interface: RS232 Display Screen: LCD hybrid touchscreen Minimum Capacity (USP compliant, 0.1% tolerance, typical): 160 mg Weighing Pan Diameter: 90 mm Dimensions: (H x W x D) 354 mm x 209 mm x 354 mm Readability (certified): 1 mg   Analysis Balance - 5 position: Precisely measures the weight of the filter membrane before and after cleanliness extraction, thereby determining the weight of the particulate contaminants in the components. Technical Parameters: Model: ATY124R Capacity (g): 120 Accuracy (mg): 0.1mg Repeatability (mg): 0.1mg Linearity (mg): 0.2mg Average Response Time (s): 2.5s Weighing Pan Size (mm): 91mm   Laboratory Table: For placing fully automated cleanliness testing equipment, printers, computers, ovens, and desiccators -Environmentally friendly E1 machined board -PVC edge banding -PVC concealed handles -Three-section damping automatic closing rails Technical Parameters: 12.7mm thick physicochemical board top 40*60mm galvanized steel pipes Cabinet and door panels: 16-18mm thick Dimensions: 4000*700*800mm   Anti-Vibration Platform for Analysis Balance A balance anti-vibration platform is a specialized device used in laboratories to house high-precision balances. Its core function is to reduce external vibration interference, maintain a stable weighing environment, and ensure accurate balance readings. - High-precision all-steel platform - Integrally welded - Suitable for Class 100,000 cleanroom environments - Three-level shock absorption Technical Parameters: Steel plate thickness: 1.0mm External table thickness: 12.7mm high-gloss white solid wood panel with 25.4mm thickened edging Inner load-bearing layer: 400mm*300mm*60mm thick granite Soft shock-absorbing footing thickness: 2.5cm     Technical Cleanliness Extraction Machines According to the customer's technical cleanliness testing requirements, we customize the corresponding cleaning methods, including pressure rinsing, ultrasonic, internal rinsing, shaking rinsing, and air blowing, so as to achieve the particles extraction of parts and components. -According to VDA19.1, ISO16232 and internal standard. -Technical and ergonomic optimizations and significant safety. -Automatic cleanliness extraction system. -Class 100 operation chamber. -Extraction options include pressure rinsing, ultrasonic, shaking rinsing, internal rinsing, air blow. -Customization available     Technical Cleanliness Analysis System With an automatic particle analysis system like scanning microscope to analyze the impurity particles on the filter membrane, and then import the contaminants information into the computer to have a acknowledge in pollutant type, quantity, size, etc., and generate a pollutant particle report with one click. - Carried Standards: VDA19, ISO16232, NAS1638, ISO4406 and other standards. - Analysis Time: Less than 3 minutes. - Particle Size: ≥5um - Repetition Accuracy: Above 99% (membrane scanned repeatedly for 10 times) - Scanning Mode: Automatic scanning Particles Identify: Metallic particles, non-metallic particles, fibers.

JYBO CleanTech cleanliness inspection process fully adheres to international cleanliness standards, including VDA19, ISO16232, and other industry standards. JYBO CleanTech cleanliness laboratory is capable of Class 1000 cleanroom operation, and its Class 100 operation chamber.

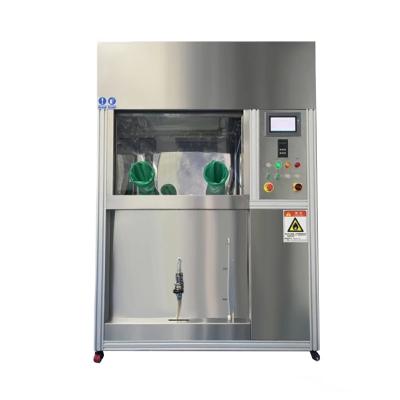

According to VDA19.1, ISO16232 and internal standard. Technical and ergonomic optimizations and significant safety. Automatic cleanliness extraction system. Class 100 operation chamber. Extraction options include pressure rinsing,ultrasounic, shaking rinsing, internal rinsing, air blow. Customization available.

According to VDA19.1, ISO16232 and internal standard. Technical and ergonomic optimizations and significant safety. Automatic cleanliness extraction system. Class 100 operation chamber. Extraction options include pressure rinsing,ultrasounic, shaking rinsing, internal rinsing, air blow. Customization available.

According to VDA19.1, ISO16232 and internal standard. Unrestricted by product weight with a maximum weight of 200kg. 360-degree flushing ensures no contaminants remain in any corners. Unrestricted by product size and easy to operate. Widely adjustable flow rate range. Provide customized services to meet all testing requirement.

Carried Standards: VDA19, ISO16232, NAS1638, ISO4406 and other standards. Analysis Time: Less than 5 minutes. Particle Size: ≥5um Particle Height: Particle height can be measured. Focus Mode: Automatic focus, no human intervention. Repetition Accuracy: Above 99% (membrane scanned repeatedly for 10 times) Scanning Mode: Aotomatic scanning Particles Identify: Metallic particles, non-metallic particles, fibers.

Carried Standards: VDA19, ISO16232, NAS1638, ISO4406 and other standards. Analysis Time: Less than 3 minutes. Particle Size: ≥15um Repetition Accuracy: Above 98% (membrane scanned repeatedly for 10 times) Scanning Mode: Aotomatic scanning Light Source: Software controlled automatic double polarized mode. Particles Identify: Metallic particles, non-metallic particles, fibers.

According to VDA19.1, ISO16232 and internal standard. Technical and ergonomic optimizations and significant safety. Automatic cleanliness extraction system. Class 100 operation chamber. Extraction options include pressure rinsing,ultrasounic, shaking rinsing, internal rinsing, air blow. Customization available.

Complete Solution for Optical Particle Analysis and Technical Cleanliness Automatic filter analysis system Make your technical cleanliness easier Contamination removal and analysis Fast live analytics and review Full system integration for high performance Modern cleanliness analysis systems with intuitive software

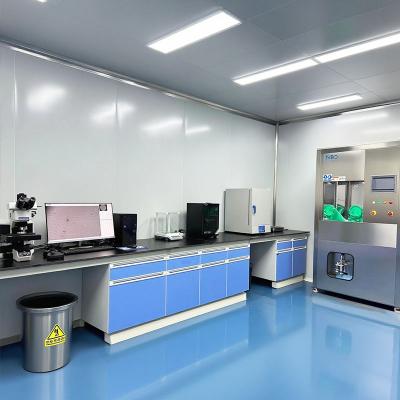

From particles extraction to particles evaluation Test laboratory for technical cleanliness Make your cleanliness testing easier One-stop automotive component cleanliness solutions Turnkey laboratory for technical cleanliness inspection

Professional instruments, standardization Analysis process based on ISO16232, VDA19  High-performance particle size testing system Test results traceable,generate results and reports Simple operation, capture images fast and efficient Automatic compensation ,each  image is clear, seamless browsing Used in auto parts, aerospace, and hydraulic lubrication industries Satisfy Volkswagen, BMW, GM, Ford and other major automakers

Reliable Component Cleanliness Extraction Equipment Ease of operation Controlled extraction environment (laminar flow cabinet) Programmable setting capabilities Less human errors involved No risk from environmental cross contamination Reduced risk of operator contamination Fit your available space and size of components
